Home >> Product >> Commercial LED Lighting» LED Batten Lights >> IP65 LED Batten Light 600mm 1200mm 1500mm 20-70W Emergency Sensor DALI

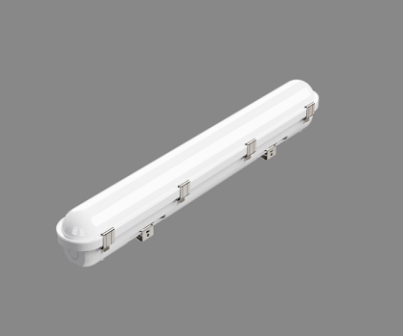

IP66 Tri Proof LED Batten Light is a versatile and reliable lighting fixture suitable for indoor and outdoor use. With sizes ranging from 600mm to 1800mm and power options from 20W to 70W, it's ideal for a wide range of applications. The batten light features LumiLEDs LED technology, an Osram driver, and a Class II, 120LM/W output for bright and consistent illumination. It's water and dustproof with an IK10 impact resistance rating and easy to install with stainless steel clips. The fixture can work with various dimming options, emergency, motion sensor, and standby motion sensor.
CLICK HERE TO SEND INQUIRY
Description
1. IP66 Rating: The fixture has an IP66 rating, which means it is completely protected against dust and can withstand powerful water jets from any direction without water penetrating the fixture, making it ideal for outdoor and indoor use in wet and dusty environments.
2. IK10 Rating: The batten light has an IK10 rating, which means it can withstand an impact of 20 joules, equivalent to the impact of a 5 kg mass dropped from a height of 400 mm, making it suitable for use in areas where the fixture may be exposed to physical damage.
3. Sizes and Power Options: The batten light comes in various sizes, ranging from 600mm to 1800mm, and power options ranging from 20W to 70W, making it suitable for a wide range of applications.
4. LEDs brand: The batten light uses LumiLEDs LED technology, which is known for its high efficiency, long lifespan, and consistent color quality.
5. Driver brand: The batten light uses an Osram driver, which is known for its high reliability and efficiency.
6. Class II rating: The batten light has a Class II rating, which means it has double insulation or reinforced insulation, making it safer to use, especially in areas where electrical grounding may not be possible.
7. 120LM/W output: The batten light has a high efficiency of 120LM/W, ensuring bright and consistent illumination while consuming less energy.
8. Easy Installation: The fixture comes with stainless steel clips that make it easy to install and remove, saving time and effort during installation.
9. Dimming and Sensor Options: The batten light can work with various dimming options, including DALI, Triac, and 0-10V, as well as emergency, motion sensor, and standby motion sensor options, allowing for greater flexibility and control over the lighting.
Model |
Watt |
Lumen |
Size(L*W*H) |
ILED-TRP-60C 01 |
20W |
2200LM |
600*83*72mm |
ILED-TRP-120C 01 |
30W/40W |
4400LM |
1200*83*72mm |
ILED-TRP-150C 01 |
50W/60W |
5500LM |
1500*83*72mm |
ILED-TRP-180C 01 |
60W/70W |
7700LM |
1800*83*72mm |
Input | 220V~240VAC 50/60Hz | LED Source | LM80 LEDs |
Materials | PC | PF | >0.9 |
CCT | 2800-6500K | CRI | >82 |
Electrical Classification | Class II | IP Class | IP66 |
Beam angle | 120° | Body Color | Gray |
Watt | 20W/40W/50W/60W/70W | Lumens | 110lm/W |
Warranty | 3-5 years | Certification | CE&RoHS&SAA,TUV |
Where uses IP65 LED Batten Light 600mm 1200mm 1500mm 1800mm 20-70W Emergency Sensor DALI?
IP66 Tri Proof LED Batten Light is a versatile lighting fixture suitable for a wide range of indoor and outdoor applications, including:

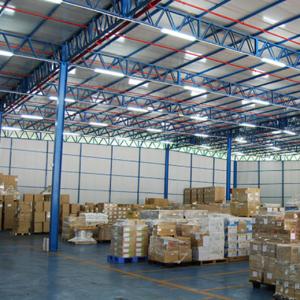

1. Warehouses and storage facilities: The batten light's water and dustproof rating, high efficiency, and various dimming options make it ideal for illuminating large storage areas and warehouses.
2. Factories and production facilities: The batten light's high impact resistance and reliable PC body make it ideal for use in production facilities where the fixture may be exposed to physical damage.
3. Parking garages and outdoor parking lots: The batten light's water and dustproof rating, high efficiency, and various sensor options, including motion sensors, make it ideal for illuminating parking areas.
4. Supermarkets and retail stores: The batten light's high efficiency, various dimming options, and easy installation make it ideal for illuminating retail spaces.
5. Schools and hospitals: The batten light's high efficiency, various dimming options, and sensor options, including standby motion sensors, make it ideal for use in areas where energy efficiency and safety are important.
6. Outdoor areas and public spaces: The batten light's water and dustproof rating, high efficiency, and various sensor options, including motion sensors, make it ideal for illuminating public spaces such as parks, walkways, and outdoor seating areas.
