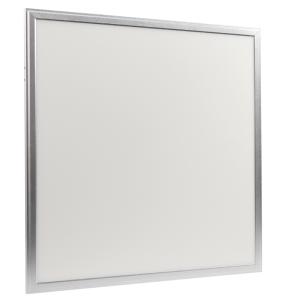

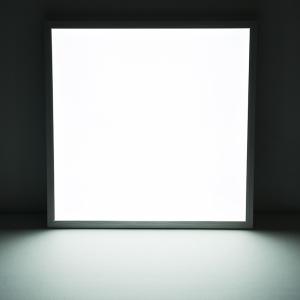

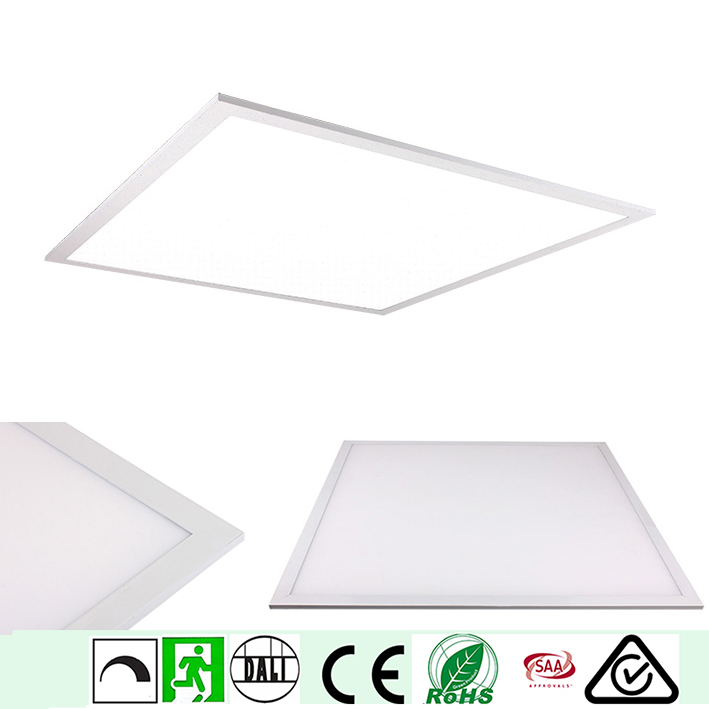

Slim LED Panel Light Dimmable DALI Emergency No Yellowing 10mm
>> Model NO.: ILED-PL6060-A
Slim LED Panel Light is a high-quality lighting fixture designed for indoor use. It features LM-80 certified LEDs as the light source. The fixture is designed specifically for recessed installation with different dimming options, including 0-10V dimming, Triac dimming, and DALI dimming. It adopts TV light guide technology with laser print LGP, providing even light distribution and a comfortable viewing experience. The fixture has an extra-thin aluminum frame of 10mm, making it an ideal choice for modern interior design. It is easy to install with recessed installation and springs and has THD<15%, PF≥0.90, and lumens maintenance of >80% @6000h. The fixture also offers an emergency option for additional safety and security.
Contact Now
CLICK HERE TO SEND INQUIRY
Description
Features:
2. Special for recessed installation, making it a perfect choice for modern interior design.
3. Different dimming options, including 0-10V dimming, Triac dimming, and DALI dimming, providing additional control and flexibility in lighting design.
4. Adopting TV light guide technology with laser print LGP, ensuring even light distribution and a comfortable viewing experience.
5. Extra-thin aluminum frame of 10mm, making it a sleek and modern lighting solution.
6. Housing material is made of aluminum, PMMA, and diffuser materials, ensuring long-lasting durability and resistance to wear and tear.
7. The fixture provides even light distribution, making it an ideal choice for general lighting in various indoor spaces.
8. Recessed installation with springs, making it easy to install and retrofit existing lighting fixtures.
9. Total harmonic distortion (THD) of less than 15% and a power factor (PF) of at least 0.90, ensuring efficient and reliable performance.
10. Lumens maintenance of over 80% @6000h, ensuring stable and long-lasting lighting performance.
11. An emergency option is available, providing additional safety and security in case of power outages.1. LM-80 certified LED as the light source, ensuring stable and reliable performance over time.
| Input | Watt | Lumen | CRI | Lens | PF | Size |
| 220-240VAC | 18W | 1800LM | >82 or 92 | 120° | >0.9 | 295x295x10mm |
| 220-240VAC | 40W | 4000LM | >82 or 92 | 120° | >0.9 | 595x595x10mm |
| Input |
100-277VAC or 220-240VAC |
LED Source | LM80 LEDs |
| Materials | Aluminum + PMMA | PF | >0.9 |
| CCT | 2700K,3000K,4000K,5000K,6000K | CRI | 82,CRI92 can be customised. |
| Lumen Efficacy | 100LM/W, High Efficacy can be customised. | Beam Angle | 120° |
| Electrical Classification | Class II | IP Class | IP42 |
| Body Color |
White or Silver
|
Certification | TUV,CE,RoHS,SAA |
Where use this Slim LED Panel Lights?

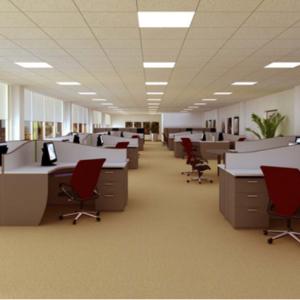

1. Offices: The fixture can be used to provide general lighting or task lighting in offices, creating a comfortable and productive working environment.
2. Retail Spaces: The fixture is ideal for use in retail spaces, such as showrooms and display areas, where customized lighting is required to highlight products and create an inviting atmosphere.
3. Hospitals and Healthcare Facilities: The fixture can be used in hospitals and healthcare facilities, creating a comfortable and soothing environment for patients and healthcare professionals.
4. Educational Facilities: The fixture can be used in classrooms and lecture halls, providing even lighting for students and teachers.
5. Residential Spaces: The fixture can be used in homes and apartments, providing a sleek and modern lighting solution for various living spaces.
