IP67 DMX 512 RGBW LED Wall Washer Light Facade Linear Lighting
>> Model NO.: ILED-WW-X4

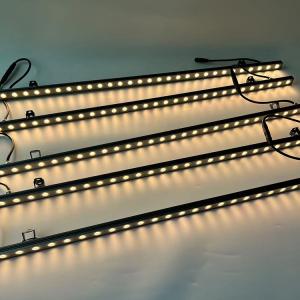

X4 IP67 DMX 512 RGBW LED Wall Washer Light is a high-quality linear lighting fixture designed for outdoor use. It features a pure aluminum body, strong tempered glass, and overflow line protection, ensuring long-lasting performance and durability. The fixture is DMX512 compatible, allowing for easy control and programming of lighting effects. It uses RGBW LEDs and comes in power options ranging from 24W to 48W. It also features different lens options, allowing for greater flexibility in lighting design. Overall, the IP67 DMX 512 RGBW LED Wall Washer Light is a versatile and reliable linear lighting solution suitable for a wide range of outdoor applications, including building facades, bridges, and architectural lighting projects.
Contact Now
CLICK HERE TO SEND INQUIRY
Description
Features:
1. IP67 Rating: The fixture has an IP67 rating, which means that it is completely protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it ideal for outdoor use in wet and dusty environments.
2. Pure Aluminum Body: The fixture is made of high-quality pure aluminum, which offers excellent thermal conductivity, durability, and corrosion resistance, ensuring long-lasting performance.
3. Overflow Line Protection: The fixture is equipped with overflow line protection, which prevents damage to the fixture in case of a power surge or overload.
4. Different Lens Options: The fixture comes with different lens options, including 10°, 25°, 40°, and 60°, allowing for greater flexibility in lighting design.
5. DMX512: The fixture is DMX512 compatible, allowing for easy control and programming of the lighting effects. This feature is particularly useful in architectural lighting projects where dynamic lighting effects are required.
6. RGBW LEDs: The fixture uses RGBW LEDs, which enable the creation of a wide range of color combinations and dynamic lighting effects. This feature is particularly useful in creating eye-catching lighting displays for building facades, bridges, and landscapes.
7. Power Options: The fixture comes in power options ranging from 24W to 48W, allowing for customization based on the specific lighting requirements of the project. This feature is particularly useful in ensuring efficient energy consumption and cost-effectiveness.
8. Strong Tempered Glass: The fixture is protected by strong tempered glass, which offers excellent resistance to impact, heat, and weather, ensuring long-term durability and performance.
9. Linear Design: The fixture has a linear design, making it ideal for wall washing illumination of building facades, bridges, and architectural features. This feature is particularly useful in highlighting the unique architectural design of buildings and structures.
10. 24VDC Power Supply: The fixture operates on a 24VDC power supply, which ensures efficient and reliable operation, making it an ideal choice for outdoor lighting projects.
|
|
ILED-WW-X4 24W |
ILED-WW-X4 24W |
ILED-WW-X4 36W |
ILED-WW-X4 48W |
|
\ |
Standard |
Option |
Option |
Option |
|
Input |
24VDC |
24VDC |
24VDC |
24VDC |
|
Watts |
24W |
24W |
36W |
48W |
|
LEDs |
SMD3030 |
SMD3030 |
SMD3030 |
SMD3535 |
|
Lens |
30° |
20°,30° or 60° |
20°,30° or 60° |
20°,30° or 60° |
|
Lumen |
1500LM |
1500LM |
2200LM |
3200LM |
|
LEDs Colour |
RGB+3000K |
RGBW(2000K,3000K, 4000K,5000K,6000K) |
RGBW(2000K,3000K ,4000K,5000K,6000K) |
RGBW(2000K,3000K, 4000K,5000K,6000K) |
|
Controller |
DMX512 |
DMX512 |
DMX512 |
DMX512 |
|
Materials |
Pure Aluminum + tempered glass |
Pure Aluminum + tempered glass |
Pure Aluminum + tempered glass |
Pure Aluminum + tempered glass |
Where use this X4 DMX512 RGBW LED Wall Washer Light?
X4 IP67 DMX 512 RGBW LED Wall Washer Light is a versatile lighting fixture suitable for a wide range of outdoor applications, including:

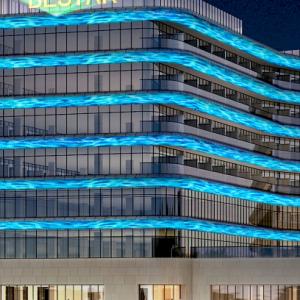

1. Building Facades: The linear design and RGBW LEDs of the fixture make it ideal for illuminating building facades, creating eye-catching lighting displays that highlight the unique architectural design of buildings.
2. Bridges: The fixture is ideal for illuminating bridges and their architectural features, creating a stunning visual effect that enhances the beauty of the structure.
3. Landscapes: The fixture can be used to highlight the unique features of landscapes, such as trees, sculptures, and water features, creating a beautiful and immersive outdoor lighting experience.
4. Architectural Lighting Projects: The DMX512 compatibility of the fixture makes it ideal for use in architectural lighting projects, where dynamic lighting effects are required.
5. Outdoor Events: The fixture can be used to create stunning lighting displays for outdoor events, such as concerts, festivals, and weddings, creating a memorable and immersive experience for attendees.
